100/60/30KW universal electronic ballast
Product Description
This product is a low-frequency AC voltage into a high-frequency controlled AC voltage and then converted to DC to drive the gas discharge lamp work electronic control device.
It has the following characteristics:
• Energy-saving, DC power supply, no stroboscopic phenomenon, support ultra-high-speed shooting
• Constant power control to extend lamp life
• Adjustable brightness, flexible operation
• With input overvoltage, undervoltage protection, over temperature, over current, leakage, output overvoltage and no load automatically cut off the output and other functions
Product Parameters
|
Product Model |
EB 100/60/30 |
|
Input voltage |
Three-phase 380V AC +-10% 100K/60K/30K |
|
Three-phase 220V AC +-10% 60K/30K |
|
|
Input current |
180A 340VAC 100KW |
|
190A 200VAC 60KW |
|
|
Output voltage |
380VDC 100K |
|
Dimming |
50-100% |
|
Working environment temperature |
-20℃-45℃ Max |
|
Weight |
139KG |
|
Protection level |
IP23 |
|
Storage temperature |
-20- 50 ℃ |

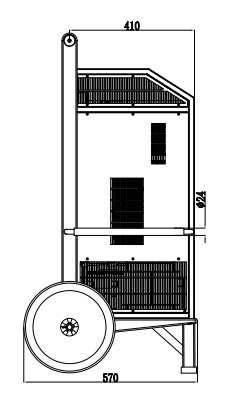

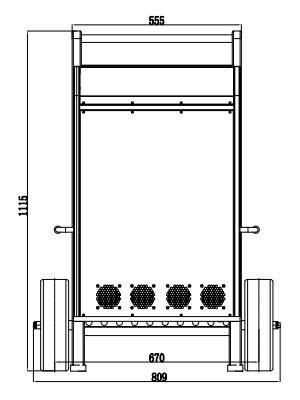

Product Size (mm)
