Soft start power supply 10KW/12KW
Product Description
This product is an AC voltage regulator circuit, which controls the output voltage waveform in each cycle of the AC power supply to control the voltage and current.
The product it has the following features:
Internal reactor, eliminate high harmonic interference
• With over-voltage, over-current protection function, can well protect the bulb
• With effect mode
• With DMX function
Specifications
|
Product Model |
HP10/12 |
|
Input voltage |
180-240V AC |
|
Input current |
55A |
|
Input frequency |
50Hz-60Hz |
|
Output voltage |
0-235VAC |
|
Output current |
0-55A |
|
Suitable for lamps |
10KW/ 12KW tungsten lamp |
|
Dimming |
0%-100% |
|
Working temperature |
-20- 45 ℃ |
|
Product Size (mm) |
491*252*312mm |
|
Product Weight |
14.9KG |
|
Protection level |
IP23 |
|
Storage temperature |
-30- 50 ℃ |

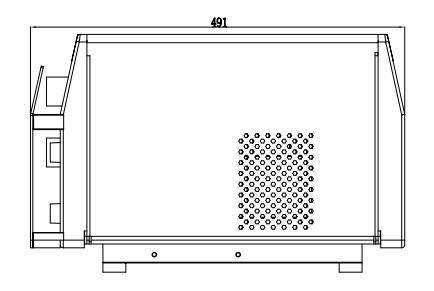

Product Size (mm)
